SYNTEC MT36 Manual
MT36 Manual
Controller
- Main Board: SYNTEC 21TA-H
- Software Version: 10.118.22T
- PLC Version: 1.05
- OP Board: 4018T3

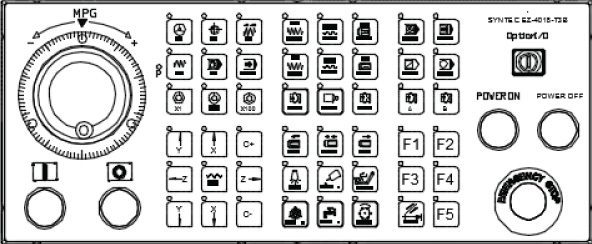

Operation Pannel
SYNTEC Program Manual
Custom G Code
- G101: Hex Milling
Custom M Code
- M00: Feed Hold
- M01: Optional Stop
- M02: Program Stop
- M03: 1th Spindle CW
- M04: 1th Spindle CCW
- M05: 1th Spindle STOP
- M06: Set Main Spindle to 1th Spindle
- M08: Coolant Pump On
- M09: Coolant Pump Off
- M10: Chuck Open
- M11: Chuck Close
- M19: Spindle Orientation (Pr1751 set degree)
- M22: CS Off
- M23: CS On
- M30: Cycle End
- M31: Barloader Start
- M33: Live Tool B CW
- M34: Live Tool B CCW
- M35: Live Tool B STOP
- M43: Live Tool A CW
- M44: Live Tool A CCW
- M45: Live Tool A STOP
- M46: Set Main Spindle to Live Tool A
- M48: Robot On
- M49: Robot Off
- M64: Door Open
- M65: Door Close
- M70: Spindle Jog for Air Blow
- M88: Air Blow Open
- M89: Air Blow Close
- M94: Barloader Back Start
- M95: Barloader End
- M98: Sub program Begin
- M99: Sub program End
