SYNTEC MT Series Manual
Machine Operational Manual
Please Note: Some chapters from the MT Series Operational Manual are only for the FANUC Controller, therefore, please find the related information through SYNTEC official controller Manual.
SYNTEC Controller Manual
- Main Board: SYNTEC 21TA-H
- Software Version: 10.118.22T
- PLC Version: 1.05
- OP Board: 4018T3

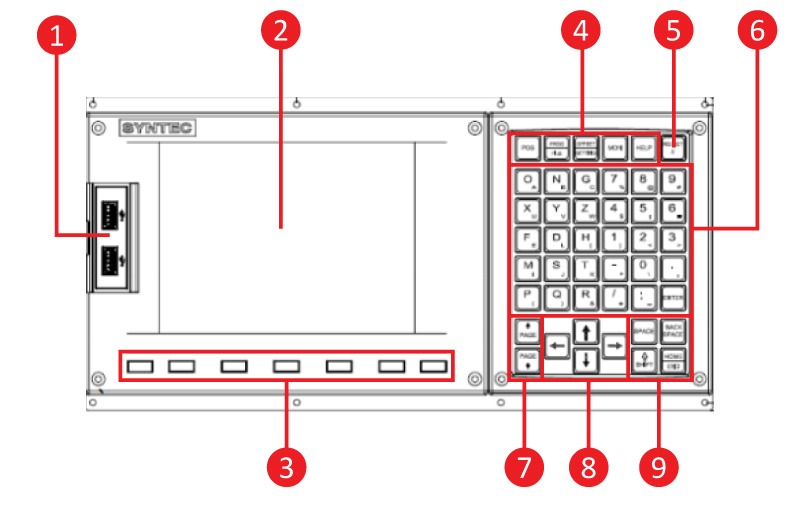

Operation Pannel
- USB Port
- LCD Screen
- FMenu bar keys
- Switch function Keys
- Reset Key
- Address-numeric Keypad
- Page Keys
- Cursor Keys
- Editing Keys

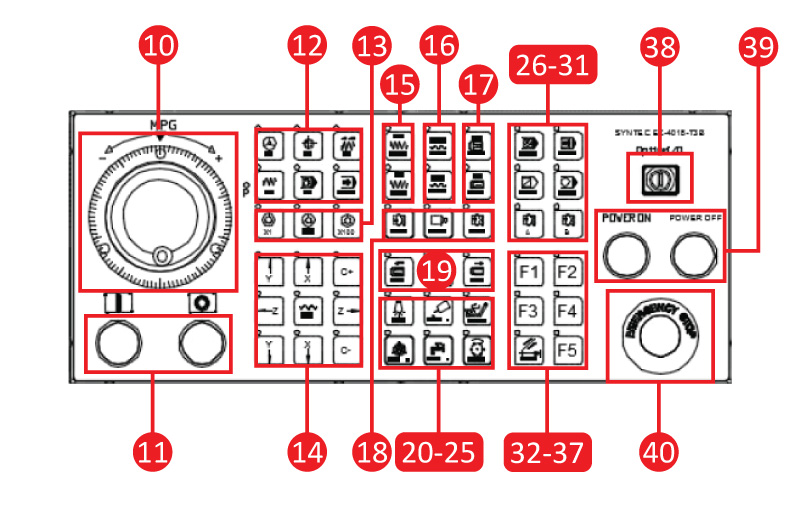

- MPG
- Cycle Start/Stop Buttons
- Mode Keys
- Feedrate keys
- Axis Select keys
- G1 Feedrate keys
- G0 Feedrate keys
- Spindle Speed keys
- Spindle Control keys
- Not Used
- Light On/Off
- Lubrication On/Off
- Chip On/Off
- Chuck Open/Close
- Coolant On/Off
- Not Used
- Optional Stop
- Optional Skip
- Single Block
- MPG Simulation
- Livetool A On/Off (JOG/MPG)
- Livetool B On/Off (JOG/MPG)
- F1: Auto Door Open/Close
- F2: Dry Run
- F3: Machine Lock
- F4: Air Blow
- Overtravel Button
- F5: Not Used
- Program Lock key
- Power On/Off Buttons
- Emergency Stop Button
COMBO Key
- C Axis On/Off: JOG Mode → [C+][C-]
Custom G Code
- G101: Hex Milling
Custom M Code
- M00: Feed Hold
- M01: Optional Stop
- M02: Program Stop
- M03: 1th Spindle CW
- M04: 1th Spindle CCW
- M05: 1th Spindle STOP
- M06: Set Main Spindle to 1th Spindle
- M08: Coolant Pump On
- M09: Coolant Pump Off
- M10: Chuck Open
- M11: Chuck Close
- M19: Spindle Orientation (Pr1751 set degree)
- M22: CS Off
- M23: CS On
- M30: Cycle End
- M31: Barloader Start
- M33: Live Tool B CW
- M34: Live Tool B CCW
- M35: Live Tool B STOP
- M43: Live Tool A CW
- M44: Live Tool A CCW
- M45: Live Tool A STOP
- M46: Set Main Spindle to Live Tool A
- M48: Robot On
- M49: Robot Off
- M64: Door Open
- M65: Door Close
- M70: Spindle Jog for Air Blow
- M88: Air Blow Open
- M89: Air Blow Close
- M94: Barloader Back Start
- M95: Barloader End
- M98: Sub program Begin
- M99: Sub program End
Electronic Drawing
Electronic Drawing For 380V 6KVA (UPDATE: 20200527)
